Description

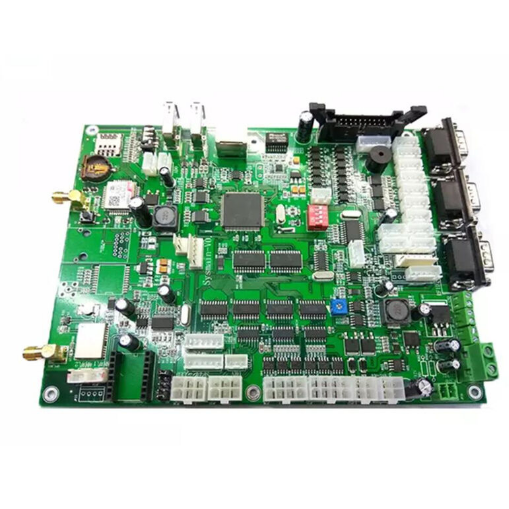

Pcba copy service Pcb clone pcb reverse engineering
PCB board manufacture and PCBA service:
1 PCB fabrication
2 Components sourcing
4 Function test
5 One stop service from PCB design, PCB layout, PCB manufacture, components sourcing, PCB assembly, test, packing and PCB&PCBA delivery.
6. PCB clone: reverse engineering, with all components comp
PCB or PCBA Files Requests
- Gerber files of the bare PCB board
- 2. BOM (Bill of material) for assembly (To short the lead time, please kindly advise us if there is any acceptable components substitution.)
- Testing Guide & Test Fixtures if necessary
- Programming files & Programming tool if necessary
- Schematic if necessary
Quality:
IPC-600G classⅡand IPC-6012B classⅡstandards.
ISO9001:2008 Quality Management
Probe flying test and Electrical test
UL certified Rating 94v-0
X-ray Inspection,
Automated Optical Inspection (AOI)
In-circuit Testing (ICT) and Function testing
ROHS compliance.
FAQ:
Q: What is needed for PCB/PCBA quotation?
A: For Bare PCB project quotation:
Please provide Quantity, Gerber file and specification like PCB material, surface finish treatment, copper thickness, board thickness, solder mask color and silkscreen color and other special
specs.
For PCBA project quotation:
Please provide above PCB Gerber file, and BOM list. If you need turnkey service include programming and functional testing etc, kindly contact us for more details.
Q: Are my files safe?
A: Your files are held in complete safety and security. We protect the intellectual property for our customers in the whole process. All documents from customers are never shared with any third parties. We are willing to sign NDA effect by customer side local law and promising to keep customers data in high confidential level.
Q: What’s your minimum of quantity (MOQ)?
A: There is no MOQ in our company. We are able to handle small as well as large volume production with flexibility.
Q: How to calculate the shipping cost?
A: The shipping cost is determined by the destination, weight, packing size of the goods. Please let us know if you need us to quote you the shipping cost.
Q: What other service do you have?
A: We mainly focus on PCB+ Assembly+ Components sourcing service. Additionally, we can also provide programming, testing, cables, enclosure assembly service.
Q: Can we inspect quality during production?
A: Yes, we are open and transparent on each production process. We Welcome you visit our factory to inspect our production process.
Q: What is your testing policy and how you control the quality?
A: Regarding to PCB samples, usually tested by flying probe; for PCB Volume over 3 square meters, usually tested by Electrical fixture which is faster. As to PCBA production, there are automated optical inspection (AOI) for each batch, X-ray inspection for BGA parts, first article inspection (FAI) before mass production.
Q:What are the main products of your PCB/PCBA services?
A:Our PCB / PCBA services are mainly for the industries including Medical, Automotive, Energy, Metering / Measurements, Consumer Electronics.
Q:How long does it take for PCB quote?
A:Normally 12 hours to 48 hours as soon as receive internal engineer evaluate confirmation.
